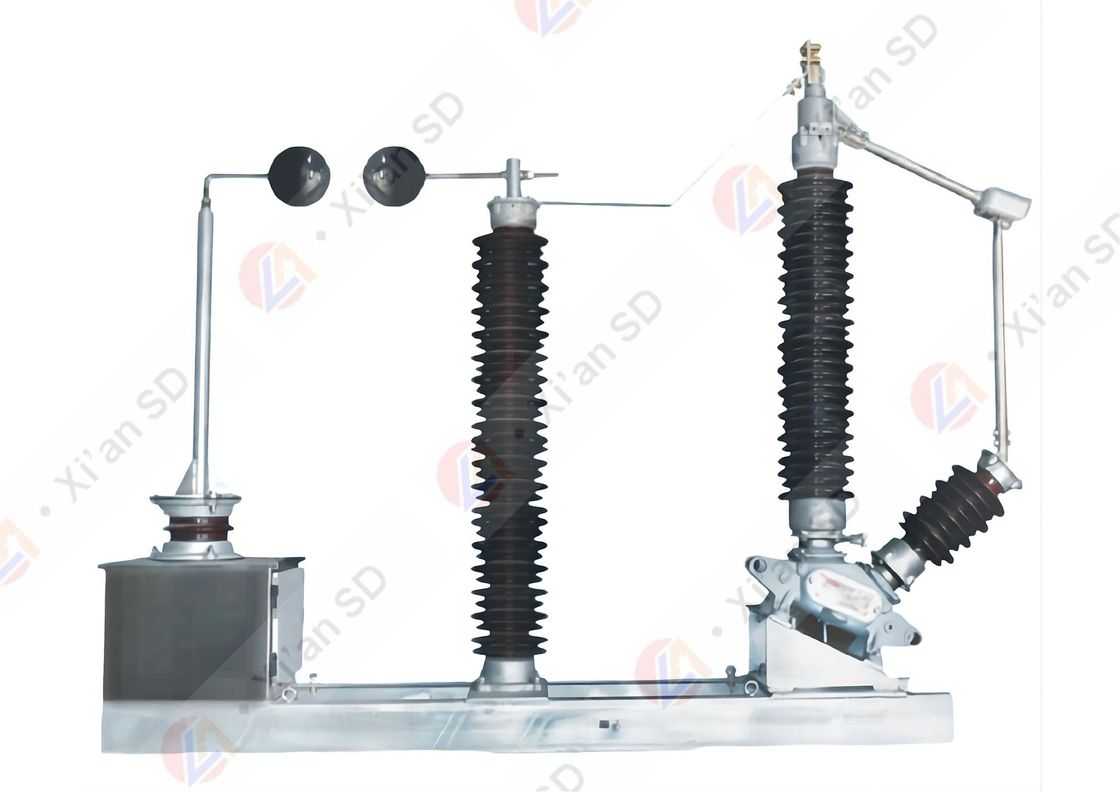

220kV Lightning Neutral Grounding Resistor For Transformer

220kV Lightning Neutral Grounding Resistor For Transformer
220kV Lightning Neutral Grounding Resistor For Transformer

Large Image :  220kV Lightning Neutral Grounding Resistor For Transformer

Product Details:
Place of Origin: China
Brand Name: Xi'an Shendian
Certification: IEC 60099-4/ GB 11032
Model Number: TJZB-35
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc.
Price: To be determined by type and quantity.
Packaging Details: Seaworthy package/ Customer specified.
Delivery Time: Ex-work 30 days~60 days depends on quantity.
Payment Terms: T/T; L/C.
Supply Ability: 1000 pc/year.

220kV Lightning Neutral Grounding Resistor For Transformer

Description
Nominal System Voltage: 35kV~220kV/ Customer Specified Usage: Transformer Neutral Point Protection
System Fault Current: 50A~ 5000A Incoming/ Outcoming: Top In Bottom Our/ Side In Side Out/ Bottom In Bottom Out
Advantage: Easy To Install Certfication: IEC 60099-4/ GB 11032
High Light:

220kV Lightning Resistor

,

5kA Lightning Resistor

,

Transformer NER neutral earth resistor

220kV Neutral Grounding Protection Device for Transformer



Product introduction:

This kind of transformer neutral protection device adopts modular construction.

It has been running well in high altitude area over decades year.


Characteristic:
1/ Entirety assembly and transportation;
2/ Easy to install and more stable;
3/ Anti-corrosion and anti-aging.

Standard Technical Data:
Below info. only for your reference, all data shall be specified and determined by technical specification and customer demand.

Item Description   Offered Offered Offered Offered
1 Type   TJZB-35 TJZB-110 TJZB-220 TJZB-330
2 TR rated voltage kV 35 110 220 330
3 Power frequency voltage kV 95 95 200 230
4 Lightning impulse voltage withstand kV 185 250 400 550
5 Metal-oxide
surge arrester
Type   Y(H)1.5W-30/98 Y(H)1.5W-72/186 Y(H)1.5W-144/320 Y(H)1.5W-210/440
Rated voltage kV 30 72 144 210
Residual voltage at lightning impulse kV ≯98 ≯186 ≯320 ≯440
Residual voltage at switching impulse kV ≯88 ≯174 ≯299 ≯411
Reference voltage at D.C. 1mA kV ≮61 ≮103 ≮205 ≮288
Leakage current at 0.75U1mA μA ≯50 ≯50 ≯50 ≯50
6 Disconnect
switch
Rated voltage kV 40.5 72.5 126 252
Rated current A 630 630 630 630
Operation mechanism   Motor/ Manual Motor/ Manual Motor/ Manual Motor/ Manual
Rated short-time current withstand kA 31.5 31.5 31.5 31.5
Rated peak current withstand kV 80 80 80 80
7 Current
transformer
Rated voltage kV 10 10 10 10
Rated insulation level   42/75 42/75 42/75 42/75
Rated dynamic current kA 110 110 110 110
8 Discharge
gap
Gap type   Ball/ Rod Ball/ Rod Ball/ Rod Ball/ Rod
Power frequecny discharge voltage kV 55±10% 83±10% 166±10% 190±10%
Impulse discharge voltage kV ≯150 ≯215 ≯350 ≯480
Gap distance mm 30~35 adjustable 60~100 adjustable 130~200 adjustable 170~250 adjustable
9 Monitor Type   JCQ-CⅠ JCQ-CⅠ JCQ-CⅡ JCQ-CⅢ
Current measurement range mA 0~5 0~5 0~10 0~15
Operation current range A 50~20000 50~20000 50~20000 50~20000



Reference:
1/ Shendian resistor is widely used in China EHV (Extra hight voltage) projects of State Grid, Southern Power Grid.
2/ Supplied resistor to ABB/Siemens/Schneider more than 20 years, as well as other capacitor/switchgear manufacturers.
3/ Shendian resistor has been exported to more than 30 counties all over the world.
