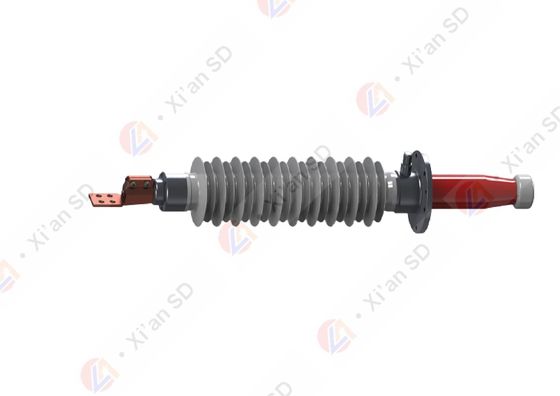

24kV Medium Voltage Cable Termination Kit Inner Cone Plug In Straight Connector

24kV Medium Voltage Cable Termination Kit Inner Cone Plug In Straight Connector
24kV Medium Voltage Cable Termination Kit Inner Cone Plug In Straight Connector 24kV Medium Voltage Cable Termination Kit Inner Cone Plug In Straight Connector

Large Image :  24kV Medium Voltage Cable Termination Kit Inner Cone Plug In Straight Connector

Product Details:
Place of Origin: China
Brand Name: Xi'an Shendian
Certification: IEC 60502
Model Number: SDCBJ24-x-xxx-xxx
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc.
Price: To be determined by type and quantity.
Packaging Details: Seaworthy package/ Customer specified.
Delivery Time: Ex-work 1 week~1 month depends on quantity.
Payment Terms: T/T; L/C.
Supply Ability: 0.5M pc/year.

24kV Medium Voltage Cable Termination Kit Inner Cone Plug In Straight Connector

Description
Material Of Varistor: Metal-Oxide Type: Inner Cone Type C
Usage: C-GIS/ RMU/ Oil Transformer Material Of Insulation: Liquid Silicone Rubber
Nominal System Voltage: 24kV Rated Current: 630A/ 1250A
Diameter: 68m~96mm Height: 309mm~485mm
High Light:

24kV termination kit for mv cable

,

MV Plug In Straight Connector

,

1250A termination kit for mv cable

24kV Inner Cone Plug In Straight Connector



Product introduction:

Shendian inner cone plug in connector fits for C-GIS, RMU and oil transformer, its dimension matches EN50181 and DIN47637.
It follows IEC60502 and Shendian product is widedly used in domestic and overseas market.
Shendian has been qualified supplier of ABB/Siemens/Schneider over 20 years.


Advantage:
1/ Better average electrical field intensity;
2/ Liquid silicon rubber makes better insulation and better elasticity;
3/ Optimized structure, easy installation;


Standard dimension:
3 core
[Cable: Cu/Al conductor, 3 core, Cu-tape/Cu-wire screen, Armoured/Unarmoured]-[Termination:Plug in 2#, Incl. earthing wire, Incl. lug]
Type Conductor diameter mm Insulation diameter mm [U0/U(Um) kV -(Conductor cross section mm2)]
SDCBJ24-2#-3×50 8.2±0.5 25.8±1.0 [18/30(36)-(50)]
SDCBJ24-2#-3×70 9.8±0.5 27.4±1.0 [18/30(36)-(70)]
SDCBJ24-2#-3×95 11.5±0.5 29.1±1.0 [18/30(36)-(95)]
SDCBJ24-2#-3×120 12.9±0.5 30.5±1.0 [18/30(36)-(120)]
SDCBJ24-2#-3×150 14.4±0.5 32±1.0 [18/30(36)-(150)]
SDCBJ24-2#-3×185 16.0±0.5 33.6±1.0 [18/30(36)-(185)]
SDCBJ24-2#-3×240 18.4±0.5 36.0±1.0 [18/30(36)-(240)]
[Cable: Cu/Al conductor, 3 core, Cu-tape/Cu-wire screen, Armoured/Unarmoured]-[Termination:Plug in 3#, Incl. earthing wire, Incl. lug]
SDCBJ24-3#-3×50 8.2±0.5 25.8±1.0 [18/30(36)-(50)]
SDCBJ24-3#-3×70 9.8±0.5 27.4±1.0 [18/30(36)-(70)]
SDCBJ24-3#-3×95 11.5±0.5 29.1±1.0 [18/30(36)-(95)]
SDCBJ24-3#-3×120 12.9±0.5 30.5±1.0 [18/30(36)-(120)]
SDCBJ24-3#-3×150 14.4±0.5 32±1.0 [18/30(36)-(150)]
SDCBJ24-3#-3×185 16.0±0.5 33.6±1.0 [18/30(36)-(185)]
SDCBJ24-3#-3×240 18.4±0.5 36.0±1.0 [18/30(36)-(240)]
SDCBJ24-3#-3×300 20.6±0.5 38.2±1.0 [18/30(36)-(300)]
SDCBJ24-3#-3×400 23.4±0.5 41.0±1.0 [18/30(36)-(400)]
1 core
[Cable: Cu/Al conductor, single core, Cu-tape/Cu-wire screen, Armoured/Unarmoured]-[Termination:Plug in 2#, Incl. earthing wire, Incl. lug]
Type Conductor diameter mm Insulation diameter mm [U0/U(Um) kV -(Conductor cross section mm2)]
SDCBJ24-2#-1×50 8.2±0.5 25.8±1.0 [18/30(36)-(50)]
SDCBJ24-2#-1×70 9.8±0.5 27.4±1.0 [18/30(36)-(70)]
SDCBJ24-2#-1×95 11.5±0.5 29.1±1.0 [18/30(36)-(95)]
SDCBJ24-2#-1×120 12.9±0.5 30.5±1.0 [18/30(36)-(120)]
SDCBJ24-2#-1×150 14.4±0.5 32±1.0 [18/30(36)-(150)]
SDCBJ24-2#-1×185 16.0±0.5 33.6±1.0 [18/30(36)-(185)]
SDCBJ24-2#-1×240 18.4±0.5 36.0±1.0 [18/30(36)-(240)]
[Cable: Cu/Al conductor, single core, Cu-tape/Cu-wire screen, Armoured/Unarmoured]-[Termination:Plug in 3#, Incl. earthing wire, Incl. lug]
SDCBJ24-3#-1×50 8.2±0.5 25.8±1.0 [18/30(36)-(50)]
SDCBJ24-3#-1×70 9.8±0.5 27.4±1.0 [18/30(36)-(70)]
SDCBJ24-3#-1×95 11.5±0.5 29.1±1.0 [18/30(36)-(95)]
SDCBJ24-3#-1×120 12.9±0.5 30.5±1.0 [18/30(36)-(120)]
SDCBJ24-3#-1×150 14.4±0.5 32±1.0 [18/30(36)-(150)]
SDCBJ24-3#-1×185 16.0±0.5 33.6±1.0 [18/30(36)-(185)]
SDCBJ24-3#-1×240 18.4±0.5 36.0±1.0 [18/30(36)-(240)]
SDCBJ24-3#-1×300 20.6±0.5 38.2±1.0 [18/30(36)-(300)]
SDCBJ24-3#-1×400 23.4±0.5 41.0±1.0 [18/30(36)-(400)]
SDCBJ24-3#-1×500 26.5±0.5 44.1±1.0 [18/30(36)-(500)]
SDCBJ24-3#-1×630 30.0±0.5 47.6±1.0 [18/30(36)-(630)]
