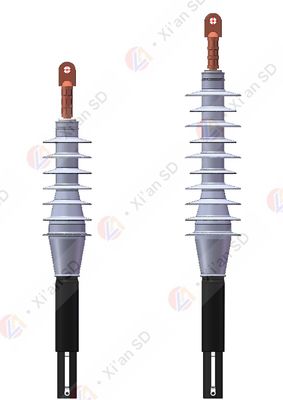

Indoor And Outdoor Medium Voltage Cable Termination Kit Dry Type IEC 60502

Indoor And Outdoor Medium Voltage Cable Termination Kit Dry Type IEC 60502
Indoor And Outdoor Medium Voltage Cable Termination Kit Dry Type IEC 60502

Large Image :  Indoor And Outdoor Medium Voltage Cable Termination Kit Dry Type IEC 60502

Product Details:
Place of Origin: China
Brand Name: Xi'an Shendian
Certification: IEC 60502
Model Number: SDZx-x-xxx
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc.
Price: To be determined by type and quantity.
Packaging Details: Seaworthy package/ Customer specified.
Delivery Time: Ex-work 1 week~1 month depends on quantity.
Payment Terms: T/T; L/C.
Supply Ability: 0.5M pc/year.

Indoor And Outdoor Medium Voltage Cable Termination Kit Dry Type IEC 60502

Description
Nominal System Voltage: Up To 35kV/ Customer Specified Material: Silicon Rubber
High Light:

Outdoor Cable Termination Kit Dry Type IEC 60502

,

IEC 60502 outdoor cable termination kit

,

Shendian Outdoor Cable Termination Kit IEC 60502

Dry Termination Kit (Outdoor/ Indoor)



Product introduction:

Shendian dry type termination kit fits for cable connection below 35kV.
It follows IEC60502 and Shendian product is widedly used in domestic and overseas market.
Shendian has been qualified supplier of ABB/Siemens/Schneider over 20 years.

Advantage:
1/ Better average electrical field intensity;
2/ Liquid silicon rubber makes better insulation and better elasticity;
3/ Optimized structure, easy installation and reliable quality.

Standard dimension:
15kV Termination kit
3 core
[Cable: Cu/Al conductor, 3 core, Cu-tape/Cu-wire screen, Armoured/Unarmoured]-[Termination: Indoor, Incl. earthing wire, Incl. lug]
Type Conductor diameter (mm) Insulation diameter (mm) [U0/U(Um) kV -(Conductor cross section mm2)]
SDZN15-3×50T(L) 8.2±0.5 18.8±1.0 [8.7/10(15)-(50)]
SDZN15-3×70T(L) 9.8±0.5 20.4±1.0 [8.7/10(15)-(70)]
SDZN15-3×95T(L) 11.5±0.5 22.1±1.0 [8.7/10(15)-(95)]
SDZN15-3×120T(L) 12.9±0.5 23.5±1.0 [8.7/10(15)-(120)]
SDZN15-3×150T(L) 14.4±0.5 25±1.0 [8.7/10(15)-(150)]
SDZN15-3×185T(L) 16.0±0.5 26.6±1.0 [8.7/10(15)-(185)]
SDZN15-3×240T(L) 18.4±0.5 29.0±1.0 [8.7/10(15)-(240)]
SDZN15-3×300T(L) 20.6±0.5 31.2±1.0 [8.7/10(15)-(300)]
SDZN15-3×400T(L) 23.4±0.5 34.0±1.0 [8.7/10(15)-(400)]
[Cable: Cu/Al conductor, 3 core, Cu-tape/Cu-wire screen, Armoured/Unarmoured]-[Termination: Outdoor, Incl. earthing wire, Incl. lug]
SDZW15-3×50T(L) 8.2±0.5 18.8±1.0 [8.7/10(15)-(50)]
SDZW15-3×70T(L) 9.8±0.5 20.4±1.0 [8.7/10(15)-(70)]
SDZW15-3×95T(L) 11.5±0.5 22.1±1.0 [8.7/10(15)-(95)]
SDZW15-3×120T(L) 12.9±0.5 23.5±1.0 [8.7/10(15)-(120)]
SDZW15-3×150T(L) 14.4±0.5 25±1.0 [8.7/10(15)-(150)]
SDZW15-3×185T(L) 16.0±0.5 26.6±1.0 [8.7/10(15)-(185)]
SDZW15-3×240T(L) 18.4±0.5 29.0±1.0 [8.7/10(15)-(240)]
SDZW15-3×300T(L) 20.6±0.5 31.2±1.0 [8.7/10(15)-(300)]
SDZW15-3×400T(L) 23.4±0.5 34.0±1.0 [8.7/10(15)-(400)]

1 core
[Cable: Cu/Al conductor, single core, Cu-tape/Cu-wire screen, Armoured/Unarmoured]-[Termination: Indoor, Incl. earthing wire, Incl. lug]
Type Conductor diameter (mm) Insulation diameter (mm) [U0/U(Um) kV -(Conductor cross section mm2)]
SDZN15-1×50T(L) 8.2±0.5 18.8±1.0 [8.7/10(15)-(50)]
SDZN15-1×70T(L) 9.8±0.5 20.4±1.0 [8.7/10(15)-(70)]
SDZN15-1×95T(L) 11.5±0.5 22.1±1.0 [8.7/10(15)-(95)]
SDZN15-1×120T(L) 12.9±0.5 23.5±1.0 [8.7/10(15)-(120)]
SDZN15-1×150T(L) 14.4±0.5 25±1.0 [8.7/10(15)-(150)]
SDZN15-1×185T(L) 16.0±0.5 26.6±1.0 [8.7/10(15)-(185)]
SDZN15-1×240T(L) 18.4±0.5 29.0±1.0 [8.7/10(15)-(240)]
SDZN15-1×300T(L) 20.6±0.5 31.2±1.0 [8.7/10(15)-(300)]
SDZN15-1×400T(L) 23.4±0.5 34.0±1.0 [8.7/10(15)-(400)]
[Cable: Cu/Al conductor, single core, Cu-tape/Cu-wire screen, Armoured/Unarmoured]-[Termination: Outdoor, Incl. earthing wire, Incl. lug]
SDZW15-1×50T(L) 8.2±0.5 18.8±1.0 [8.7/10(15)-(50)]
SDZW15-1×70T(L) 9.8±0.5 20.4±1.0 [8.7/10(15)-(70)]
SDZW15-1×95T(L) 11.5±0.5 22.1±1.0 [8.7/10(15)-(95)]
SDZW15-1×120T(L) 12.9±0.5 23.5±1.0 [8.7/10(15)-(120)]
SDZW15-1×150T(L) 14.4±0.5 25±1.0 [8.7/10(15)-(150)]
SDZW15-1×185T(L) 16.0±0.5 26.6±1.0 [8.7/10(15)-(185)]
SDZW15-1×240T(L) 18.4±0.5 29.0±1.0 [8.7/10(15)-(240)]
SDZW15-1×300T(L) 20.6±0.5 31.2±1.0 [8.7/10(15)-(300)]
SDZW15-1×400T(L) 23.4±0.5 34.0±1.0 [8.7/10(15)-(400)]



24kV Termination kit

3 core
[Cable: Cu/Al conductor, 3 core, Cu-tape/Cu-wire screen, Armoured/Unarmoured]-[Termination: Indoor, Incl. earthing wire, Incl. lug]
Type Conductor diameter (mm) Insulation diameter (mm) [U0/U(Um) kV -(Conductor cross section mm2)]
SDZN24-3×50T(L) 8.2±0.5 25.8±1.0 [18/30(36)-(50)]
SDZN24-3×70T(L) 9.8±0.5 27.4±1.0 [18/30(36)-(70)]
SDZN24-3×95T(L) 11.5±0.5 29.1±1.0 [18/30(36)-(95)]
SDZN24-3×120T(L) 12.9±0.5 30.5±1.0 [18/30(36)-(120)]
SDZN24-3×150T(L) 14.4±0.5 32±1.0 [18/30(36)-(150)]
SDZN24-3×185T(L) 16.0±0.5 33.6±1.0 [18/30(36)-(185)]
SDZN24-3×240T(L) 18.4±0.5 36.0±1.0 [18/30(36)-(240)]
SDZN24-3×300T(L) 20.6±0.5 38.2±1.0 [18/30(36)-(300)]
SDZN24-3×400T(L) 23.4±0.5 41.0±1.0 [18/30(36)-(400)]
[Cable: Cu/Al conductor, 3 core, Cu-tape/Cu-wire screen, Armoured/Unarmoured]-[Termination: Outdoor, Incl. earthing wire, Incl. lug]
SDZW24-3×50T(L) 8.2±0.5 25.8±1.0 [18/30(36)-(50)]
SDZW24-3×70T(L) 9.8±0.5 27.4±1.0 [18/30(36)-(70)]
SDZW24-3×95T(L) 11.5±0.5 29.1±1.0 [18/30(36)-(95)]
SDZW24-3×120T(L) 12.9±0.5 30.5±1.0 [18/30(36)-(120)]
SDZW24-3×150T(L) 14.4±0.5 32±1.0 [18/30(36)-(150)]
SDZW24-3×185T(L) 16.0±0.5 33.6±1.0 [18/30(36)-(185)]
SDZW24-3×240T(L) 18.4±0.5 36.0±1.0 [18/30(36)-(240)]
SDZW24-3×300T(L) 20.6±0.5 38.2±1.0 [18/30(36)-(300)]
SDZW24-3×400T(L) 23.4±0.5 41.0±1.0 [18/30(36)-(400)]
1 core
[Cable: Cu/Al conductor, single core, Cu-tape/Cu-wire screen, Armoured/Unarmoured]-[Termination: Indoor, Incl. earthing wire, Incl. lug]
Type Conductor diameter (mm) Insulation diameter (mm) [U0/U(Um) kV -(Conductor cross section mm2)]
SDZN24-1×50T(L) 8.2±0.5 25.8±1.0 [18/30(36)-(50)]
SDZN24-1×70T(L) 9.8±0.5 27.4±1.0 [18/30(36)-(70)]
SDZN24-1×95T(L) 11.5±0.5 29.1±1.0 [18/30(36)-(95)]
SDZN24-1×120T(L) 12.9±0.5 30.5±1.0 [18/30(36)-(120)]
SDZN24-1×150T(L) 14.4±0.5 32±1.0 [18/30(36)-(150)]
SDZN24-1×185T(L) 16.0±0.5 33.6±1.0 [18/30(36)-(185)]
SDZN24-1×240T(L) 18.4±0.5 36.0±1.0 [18/30(36)-(240)]
SDZN24-1×300T(L) 20.6±0.5 38.2±1.0 [18/30(36)-(300)]
SDZN24-1×400T(L) 23.4±0.5 41.0±1.0 [18/30(36)-(400)]
[Cable: Cu/Al conductor, single core, Cu-tape/Cu-wire screen, Armoured/Unarmoured]-[Termination: Outdoor, Incl. earthing wire, Incl. lug]
SDZW24-1×50T(L) 8.2±0.5 25.8±1.0 [18/30(36)-(50)]
SDZW24-1×70T(L) 9.8±0.5 27.4±1.0 [18/30(36)-(70)]
SDZW24-1×95T(L) 11.5±0.5 29.1±1.0 [18/30(36)-(95)]
SDZW24-1×120T(L) 12.9±0.5 30.5±1.0 [18/30(36)-(120)]
SDZW24-1×150T(L) 14.4±0.5 32±1.0 [18/30(36)-(150)]
SDZW24-1×185T(L) 16.0±0.5 33.6±1.0 [18/30(36)-(185)]
SDZW24-1×240T(L) 18.4±0.5 36.0±1.0 [18/30(36)-(240)]
SDZW24-1×300T(L) 20.6±0.5 38.2±1.0 [18/30(36)-(300)]
SDZW24-1×400T(L) 23.4±0.5 41.0±1.0 [18/30(36)-(400)]



35kV Termination kit

3 core
[Cable: Cu/Al conductor, 3 core, Cu-tape/Cu-wire screen, Armoured/Unarmoured]-[Termination: Indoor, Incl. earthing wire, Incl. lug]
Type Conductor diameter (mm) Insulation diameter (mm) [U0/U(Um) kV -(Conductor cross section mm2)]
SDZN40.5-3×50T(L) 8.2±0.5 30.8±1.0 [26/35(40.5)-(50)]
SDZN40.5-3×70T(L) 9.8±0.5 32.4±1.0 [26/35(40.5)-(70)]
SDZN40.5-3×95T(L) 11.5±0.5 34.0±1.0 [26/35(40.5)-(95)]
SDZN40.5-3×120T(L) 12.9±0.5 35.5±1.0 [26/35(40.5)-(120)]
SDZN40.5-3×150T(L) 14.4±0.5 37.0±1.0 [26/35(40.5)-(150)]
SDZN40.5-3×185T(L) 16.0±0.5 38.6±1.0 [26/35(40.5)-(185)]
SDZN40.5-3×240T(L) 18.4±0.5 41.0±1.0 [26/35(40.5)-(240)]
SDZN40.5-3×300T(L) 20.6±0.5 43.2±1.0 [26/35(40.5)-(300)]
SDZN40.5-3×400T(L) 23.4±0.5 46.0±1.0 [26/35(40.5)-(400)]
[Cable: Cu/Al conductor, 3 core, Cu-tape/Cu-wire screen, Armoured/Unarmoured]-[Termination: Outdoor, Incl. earthing wire, Incl. lug]
SDZW40.5-3×50T(L) 8.2±0.5 30.8±1.0 [26/35(40.5)-(50)]
SDZW40.5-3×70T(L) 9.8±0.5 32.4±1.0 [26/35(40.5)-(70)]
SDZW40.5-3×95T(L) 11.5±0.5 34.0±1.0 [26/35(40.5)-(95)]
SDZW40.5-3×120T(L) 12.9±0.5 35.5±1.0 [26/35(40.5)-(120)]
SDZW40.5-3×150T(L) 14.4±0.5 37.0±1.0 [26/35(40.5)-(150)]
SDZW40.5-3×185T(L) 16.0±0.5 38.6±1.0 [26/35(40.5)-(185)]
SDZW40.5-3×240T(L) 18.4±0.5 41.0±1.0 [26/35(40.5)-(240)]
SDZW40.5-3×300T(L) 20.6±0.5 43.2±1.0 [26/35(40.5)-(300)]
SDZW40.5-3×400T(L) 23.4±0.5 46.0±1.0 [26/35(40.5)-(400)]
1 core
[Cable: Cu/Al conductor, single core, Cu-tape/Cu-wire screen, Armoured/Unarmoured]-[Termination: Indoor, Incl. earthing wire, Incl. lug]
Type Conductor diameter (mm) Insulation diameter (mm) [U0/U(Um) kV -(Conductor cross section mm2)]
SDZN40.5-1×50T(L) 8.2±0.5 30.8±1.0 [26/35(40.5)-(50)]
SDZN40.5-1×70T(L) 9.8±0.5 32.4±1.0 [26/35(40.5)-(70)]
SDZN40.5-1×95T(L) 11.5±0.5 34.0±1.0 [26/35(40.5)-(95)]
SDZN40.5-1×120T(L) 12.9±0.5 35.5±1.0 [26/35(40.5)-(120)]
SDZN40.5-1×150T(L) 14.4±0.5 37.0±1.0 [26/35(40.5)-(150)]
SDZN40.5-1×185T(L) 16.0±0.5 38.6±1.0 [26/35(40.5)-(185)]
SDZN40.5-1×240T(L) 18.4±0.5 41.0±1.0 [26/35(40.5)-(240)]
SDZN40.5-1×300T(L) 20.6±0.5 43.2±1.0 [26/35(40.5)-(300)]
SDZN40.5-1×400T(L) 23.4±0.5 46.0±1.0 [26/35(40.5)-(400)]
[Cable: Cu/Al conductor, single core, Cu-tape/Cu-wire screen, Armoured/Unarmoured]-[Termination: Outdoor, Incl. earthing wire, Incl. lug]
SDZW40.5-1×50T(L) 8.2±0.5 30.8±1.0 [26/35(40.5)-(50)]
SDZW40.5-1×70T(L) 9.8±0.5 32.4±1.0 [26/35(40.5)-(70)]
SDZW40.5-1×95T(L) 11.5±0.5 34.0±1.0 [26/35(40.5)-(95)]
SDZW40.5-1×120T(L) 12.9±0.5 35.5±1.0 [26/35(40.5)-(120)]
SDZW40.5-1×150T(L) 14.4±0.5 37.0±1.0 [26/35(40.5)-(150)]
SDZW40.5-1×185T(L) 16.0±0.5 38.6±1.0 [26/35(40.5)-(185)]
SDZW40.5-1×240T(L) 18.4±0.5 41.0±1.0 [26/35(40.5)-(240)]
SDZW40.5-1×300T(L) 20.6±0.5 43.2±1.0 [26/35(40.5)-(300)]
SDZW40.5-1×400T(L) 23.4±0.5 46.0±1.0 [26/35(40.5)-(400)]
