Power Surge Protective Device

Description
High Light:

switch type Surge Protective Device

,

Power Supply Surge Protective Device

,

420V lightning surge protection device

Power Supply Surge Protective Device



Product introduction:

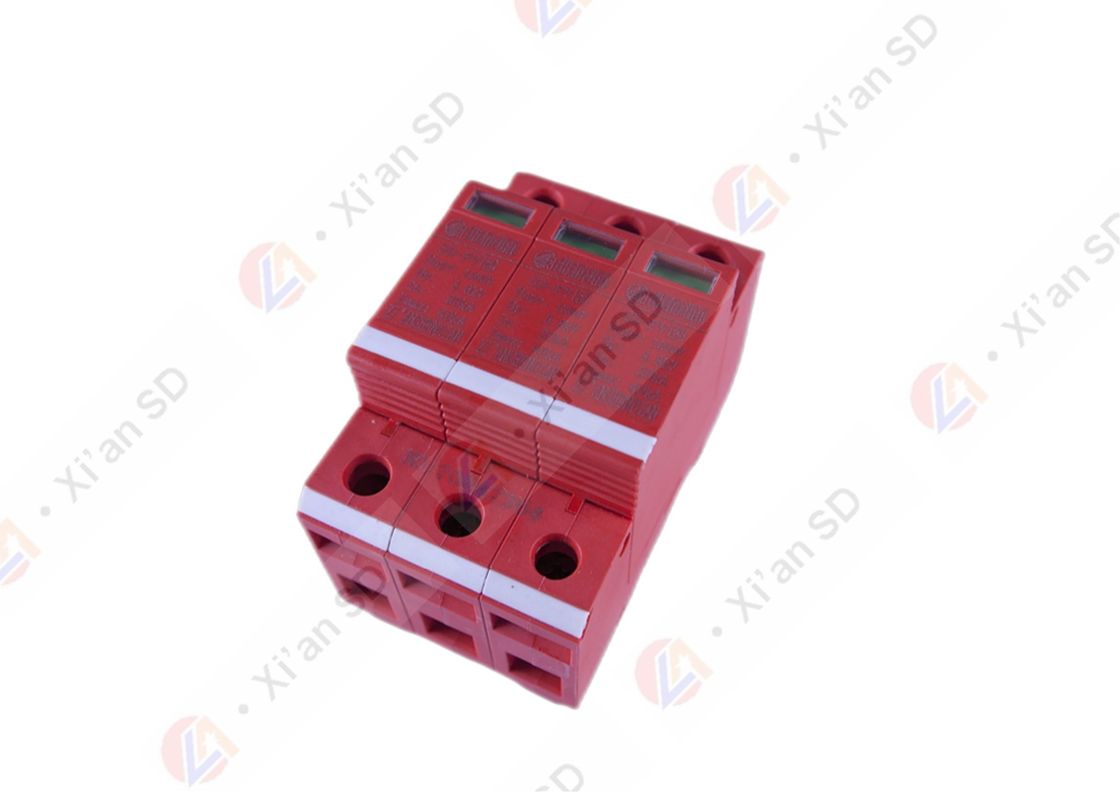

SDZ100-50 is class 1 switch-type surge protection. It can effectively release the incoming and inductive lightning on the low-voltage line of system, and effectively protect power supply equipment from lightning strike.


Characteristic:
1/ Impulse current reaches 10/350μs 60kA;
2/ Low voltage limitation;
3/ Nominal discharge current reaches 8/20μs 200kA;
4/ Strong capability to cut off residual current;
5/ Discharge monitor is applicable to configurate with RS485 communication.


Installation:

1/ Install on 35mm rail;

2/ It is necessary to series connect a fuse or air switch with SPD.


Maintenance:
SPD should be inspectied and maintenance in reuglar basis, pls duly replace SPD if it is red color in display window.



Standard Technical Data:

A: Class Ⅰ
Class
Type SDZ100-50/420 SDZ100-50/440
Max. continuous operation voltage (Uc) 420V 440V
Protection voltage Up <2.5kV <2.5kV
Power Supply 3 phase/ Wind power system 3 phase/ Wind power system
Nominal discharge current, In (8/20μs) 200kA/phase 200kA/phase
Impulse discharge current, limp (10/350μs) 60kA/phase 60kA/phase
Cross section of connection wire 16mm2~30mm2 (Mul.) 16mm2~30mm2 (Mul.)
Protection mode L-PE; L-N; N-PE L-PE; L-N; N-PE
Environment condition -40℃~+85℃ -40℃~+85℃
Dimension (mm) 150*35(n)*78 (n is quanity) 150*35(n)*78 (n is quanity)
Installation 35mm std. rail 35mm std. rail



B: Class Ⅱ

Class
Type SDZ-60/275 SDZ-60/385 SDZ-60/400 SDZ-60/420 NPE
Max. continuous operation voltage (Uc) 275V 385V 400V 420V 255V
Protection voltage Up <1.5kV <2.0kV <2.2kV <2.3kV <1.5kV
Power Supply 1 phase/ 3 phases 1 phase/ 3 phases 1 phase/ 3 phases 1 phase/ 3 phases 1 phase/ 3 phases
Nominal discharge current, In (8/20μs) 40kA/phase 40kA/phase 40kA/phase 40kA/phase 40kA/phase
Max. discharge current, lmax (8/20μs) 60kA/phase 60kA/phase 60kA/phase 60kA/phase 60kA/phase
Leakage current <20μA <20μA <20μA <20μA /
Cross section of connection wire 16mm2~25mm2 (Mul.) 16mm2~25mm2 (Mul.) 16mm2~25mm2 (Mul.) 16mm2~25mm2 (Mul.) 16mm2~25mm2 (Mul.)
Protection mode L-PE; L-N; N-PE L-PE; L-N; N-PE L-PE; L-N; N-PE L-PE; L-N; N-PE L-PE; L-N; N-PE
Environment condition -40℃~+85℃ -40℃~+85℃ -40℃~+85℃ -40℃~+85℃ -40℃~+85℃
Dimension (mm) 90*30(n)*68 (n is quanity) 90*30(n)*68 (n is quanity) 90*30(n)*68 (n is quanity) 90*30(n)*68 (n is quanity) 90*30(n)*68 (n is quanity)
Installation 35mm std. rail 35mm std. rail 35mm std. rail 35mm std. rail 35mm std. rail



C: Class Ⅲ

Level
Type SDZ-40/275 SDZ-40/385 SDZ-40/420 SDZ-40/440 NPE
Max. continuous operation voltage (Uc) 275V 385V 420V 440V 255V
Protection voltage Up <1.3kV <1.8kV <2.0kV <2.2kV <1.5kV
Power Supply 1 phase/ 3 phases 1 phase/ 3 phases 1 phase/ 3 phases 1 phase/ 3 phases 1 phase/ 3 phases
Nominal discharge current, In (8/20μs) 20kA/phase 20kA/phase 20kA/phase 20kA/phase 20kA/phase
Max. discharge current, lmax (8/20μs) 40kA/phase 40kA/phase 40kA/phase 40kA/phase 40kA/phase
Leakage current <20μA <20μA <20μA <20μA /
Cross section of connection wire 10mm2~16mm2 (Mul.) 10mm2~16mm2 (Mul.) 10mm2~16mm2 (Mul.) 10mm2~16mm2 (Mul.) 10mm2~16mm2 (Mul.)
Protection mode L-PE; L-N; N-PE L-PE; L-N; N-PE L-PE; L-N; N-PE L-PE; L-N; N-PE L-PE; L-N; N-PE
Degradation indicator Yes Yes Yes Yes Yes
Remote alarm Optional by customer Optional by customer Optional by customer Optional by customer Optional by customer
Environment condition -40℃~+85℃ -40℃~+85℃ -40℃~+85℃ -40℃~+85℃ -40℃~+85℃
Dimension (mm) 90*18(n)*65 (n is quanity) 90*18(n)*65 (n is quanity) 90*18(n)*65 (n is quanity) 90*18(n)*65 (n is quanity) 90*18(n)*65 (n is quanity)
Installation 35mm std. rail 35mm std. rail 35mm std. rail 35mm std. rail 35mm std. rail
