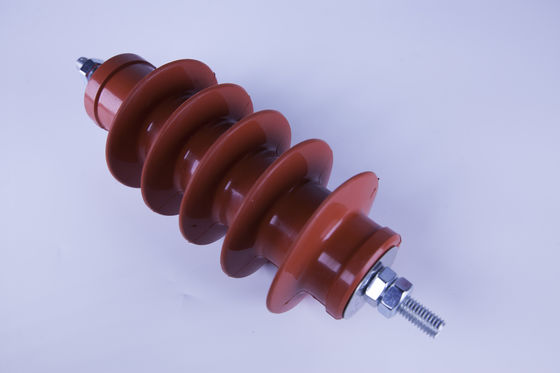

10kV Gapless MOA Lightning Surge Arrester For Power Station-YH5WZ-12/32.4

10kV Gapless MOA Lightning Surge Arrester For Power Station-YH5WZ-12/32.4
10kV Gapless MOA Lightning Surge Arrester For Power Station-YH5WZ-12/32.4

Large Image :  10kV Gapless MOA Lightning Surge Arrester For Power Station-YH5WZ-12/32.4

Product Details:
Place of Origin: China
Brand Name: Xi'an Shendian
Certification: IEC 60099-4/ GB 11032
Model Number: YH5WZ-12/32.4/ As per Technical demand
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc.
Price: To be determined by type and quantity.
Packaging Details: Seaworthy package/ Customer specified.
Delivery Time: Ex-work 1 week~1 month depends on quantity.
Payment Terms: T/T; L/C.
Supply Ability: 0.5M pc/year.

10kV Gapless MOA Lightning Surge Arrester For Power Station-YH5WZ-12/32.4

Material: Metal-oxide Type: With Series Gap
Usage: Indoor/ Outdoor Color: Red/ Grey/ Customer Specified
Nominal Voltage Of System: 10kV Nomina Discharge Current: 5kA
Parachute Diameter: Φ82mm Height: 255mm
High Light:

Metal Oxide Industrial Lightning Arrester


10kV Gapless MOA Lightning Surge Arrester

Surge Arrester-Gapless MOA for power station-YH5WZ-12/32.4

Metal-oxide surge arrester introduction:

Polymer-housed metal oxide surge arrester is a scientific achievement combining the advantages of organic insulation materials and porcelain-housed arrester technologies. Therefore, polymer-housed metal oxide surge arrester not only has the advantages of porcelain-housed arrester, but also has other advantages, such as good electrical performance, strong dielectric strength, tracking resistance, high- and low-temperature resistance, aging resistance, sandstorm resistance, explosion-proof performance, sound chemical stability, and hydrophobicity. The housing is made of high-quality silicone rubber, and formed by one step with integral moulding and curing process, with high sealing performance and long service life. The polymer-housed arrester is designed and manufactured in strict accordance with GB 11032 and takes a leading position in the similar products in China. Featured by reliable protection performance and stable operation, the polymer-housed arrester is widely used in the major projects of State Grid Corporation of China (SGCC) and China Southern Power Grid Company Limited (CSG), including the following SGCC's projects: 1,000kV UHV Southeast Shanxi Substation of 1,000kV Southeast Shanxi - Nanyang - Jingmen UHVAC Pilot Demonstration Project, Extension Works of 1,000kV Nanyang Switching Station of 1,000kV Southeast Shanxi - Nanyang - Jingmen UHV AC Pilot Demonstration Project, South Hami Converter Station of ±800kV Hami- Zhengzhou UHVDC Electricity Transmission Project, 750kV East Lanzhou Station, 500kV Beijing Shunyi Substation, 750kV Gansu Baiyin Substation, 750kV Shaanxi Baoji Substation, 750kV Shazhou Substation, 750kV Qinghai Qaidam Substation and 500kV Baoji - Deyang DC Electricity Transmission Project, as well as DC De-icing Project of 500kV Hechi Substation of CSG EHV Power Transmission Company, DC De-icing Project of 500kV Anshun Substation of Guizhou Power Grid Company and 330kV Sanxing Substation in Xi'an High-tech Zone.


Description of type:

According to the JB/T 8459-2011,the type of MOA shows as below:

Product type: Y-porcelain-housed YH-polymer-housed
Structure feature: W-without gap C-with series gaps B-with shunt gaps
Service condition: S-distribution Z-power station R-shunt capacitor
D-motor T-electrical railway X-overhead line
Additional feature: W-anti-pollution TH-for hot and humid area G-high altitude type
Normal service conditions of metal-oxide surge arrester:

1.For indoors and outdoors;

2.Ambient air temperature within the range of-40℃~+40℃;

3.Altitude not exceeding 2600m;

4.Frequency for A.C.power supply not less than 48Hz and not exceeding 62HZ;

5.Power Frequency voltage applied continuously between the terminals of the arrester not exceeding its continuous operating voltage;

6.Earthquake intensity:8 degree and below;

10.Maximal wind velocity not exceeding 35m/s. Please indicate in the contract,at exceptionally movement condition.

Advantage of metal-oxide surge arrester:
1.Metal-oxide surge arrester have low partial discharge;
2.Metal-oxide surge arrester have low residual voltage;
3.Metal-oxide surge arrester have high dielectric insulation level;
4.Tolerance to high/low temperature;
8. Shorter lead time (Ex-work 1 week+).


Metal-oxide surge arrester-Aapless MOA for Distribution

Below info. only for your reference, all data shall be specified and determined by technical specification and customer demand.

技术参数 Technical



Product type




of system

额定 电压 Rated voltage

持 续 运


Continuous operation





at D.C.YmA











陡波冲击 Steeping impulse







φ mm

高度 Height

H mm



Fig No

残压 Residual voltage


YH5WZ-5/13.5 3 5 4.0 7.2 5 13.5 15.5 11.5 82 200 1
YH5WZ-10/27 6 10 8.0 14.4 5 27.0 31.0 23.0 82 200 1
YH5WZ-12/32.4 10 12 9.6 17.4 5 32.4 37.2 27.6 82 255 1
YH5WZ-15/40.5 10 15 12.0 21.8 5 40.5 46.5 34.5 82 255 1
YH5WZ-17/45 10 17 13.6 24.0 5 45.0 51.8 38.3 82 255 1
Y5WZ-26/66 20 26 20.8 37.0 5 66.0 76.0 56.0 232 995 5
YH5WZ-26/66 114 345 4
Y5WZ-32/85 20 32 25.6 47.0 5 85.0 95.0 75.0 232 995 5
YH5WZ-32/85 114 405 4
Y5WZ-51/134 35 51 40.8 73.0 5 134.0 154.0 114.0 232 995 5
YH5WZ-51/134 114 525 4
Y5WZ-84/221 66 84 67.2 121 5 221 254 188 252 1200 6
YH5WZ-84/221 195 1296 8
Y5WZ-90/235 66 90 72.5 130 5 235 270 201 252 200 6
YH5WZ-90/235 195 1296 8
Y10WZ-90/235 66 90 72.5 130 10 235 264 201 252 1200 6
YH10WZ-90/235 195 1296 8
Y5WZ-96/250 110 96 75 140 5 250 288 213 270 1620 7
YH5WZ-96/250 195 1296 8
Y10WZ-96/250 110 96 75 140 10 250 280 213 270 1620 7
YH10WZ-96/250 195 1296 8

The structure and installtion dimensional drawing:
10kV Gapless MOA Lightning Surge Arrester For Power Station-YH5WZ-12/32.4 0
