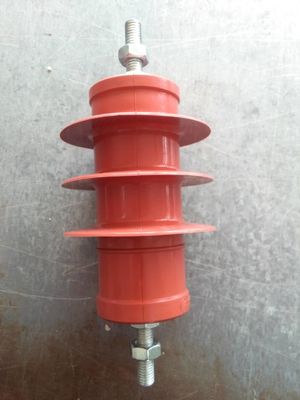

Metal Oxide Surge Arrester Gapless MOA For Power Station YH5WZ-10/27

Metal Oxide Surge Arrester Gapless MOA For Power Station YH5WZ-10/27
Metal Oxide Surge Arrester Gapless MOA For Power Station YH5WZ-10/27

Large Image :  Metal Oxide Surge Arrester Gapless MOA For Power Station YH5WZ-10/27

Product Details:
Place of Origin: China
Brand Name: Xi'an Shendian
Certification: IEC 60099-4/ GB 11032
Model Number: YH5WZ-10/27/ As per Technical demand
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc.
Price: To be determined by type and quantity.
Packaging Details: Seaworthy package/ Customer specified.
Delivery Time: Ex-work 1 week~1 month depends on quantity.
Payment Terms: T/T; L/C.
Supply Ability: 0.5M pc/year.

Metal Oxide Surge Arrester Gapless MOA For Power Station YH5WZ-10/27

Description
Material: Metal-oxide Type: With Series Gap
Usage: Indoor/ Outdoor Color: Red/ Grey/ Customer Specified
Nominal Voltage Of System: 6kV Nomina Discharge Current: 5kA
Parachute Diameter: Φ82mm Height: 200mm
High Light:

Power Station Lightning Surge Protection Device

,

Power Station Metal Oxide Surge Arrester

,

Customized Lightning Surge Arrester

Metal-oxide surge arrester-Gapless MOA for Power Station-YH5WZ-10/27



Metal-oxide surge arrester introduction:

Metal-oxide surge arrester is one of the most advanced protectors limiting overvoltage, and is the basis of the insulation coordination equipment in power industry.Metal-oxide surge arrester has many advantages such as quick action, flat Vol-ampere characteristics, low residual voltage, high discharge current capacity, stable electrical performance,long lifecycle,simple structure and etc.Metal-oxide surge arrester is widely used in power generation, transformation and distribution system to prevent the insulation of the power equipments from being damaged by the over-voltage.

Polymer-housed metal-oxide surge arrester is the scientific achievement that combines the advantages of organic insulation material and traditional porcelain-clad MOA technique.Metal-oxide surge arrester has excellent insulation performance,high dialectical strength,anti-leaking,anti-electric corrosion,heat-resisting,cold-resisting,anti-aging,explosion-proof,and good chemical stability,hydrophobic property,and nice sealing.Metal-oxide surge arrester is designed and manufactured strictly following the standard of GB 11032 and achieves advantage against the competitive international products.



Description of type:

According to the JB/T 8459-2011,the type of MOA shows as below:

Product type: Y-porcelain-housed YH-polymer-housed
Structure feature: W-without gap C-with series gaps B-with shunt gaps
Service condition: S-distribution Z-power station R-shunt capacitor
D-motor T-electrical railway X-overhead line
Additional feature: W-anti-pollution TH-for hot and humid area G-high altitude type

Normal service conditions of metal-oxide surge arrester:

1.For indoors and outdoors;

2.Ambient air temperature within the range of-40℃~+40℃;

3.Altitude not exceeding 2600m;

4.Frequency for A.C.power supply not less than 48Hz and not exceeding 62HZ;

5.Power Frequency voltage applied continuously between the terminals of the arrester not exceeding its continuous operating voltage;

6.Earthquake intensity:8 degree and below;

10.Maximal wind velocity not exceeding 35m/s. Please indicate in the contract,at exceptionally movement condition.


Advantage of metal-oxide surge arrester:
1.Metal-oxide surge arrester have low partial discharge;
2.Metal-oxide surge arrester have low residual voltage;
3.Metal-oxide surge arrester have high dielectric insulation level;
4.Tolerance to high/low temperature;
5.Explosion-proof;
6.Anti-corrosion;
7.Anti-aging;
8. Shorter lead time (Ex-work 1 week+).


Technicaparameters:

Metal-oxide surge arrester-Aapless MOA for Distribution

Below info. only for your reference, all data shall be specified and determined by technical specification and customer demand.

技术参数 Technical

Parametes

产品型号

Product type

系统标

称电压

vol(Nom)t(i)age(nal)

of system

额定 电压 Rated voltage

持 续 运

行电压

Continuous operation

voltage

直流1mA

参考电压

Revoltage(feren)ce

at D.C.YmA

kV.Dc文

标称放

电电流

Nominal

discharge

current

kA.peak

雷电冲击

Lightning

impulse

陡波冲击 Steeping impulse

操作冲击

Switching

impulse

伞径

Parachute

diameter

φ mm

高度 Height

H mm



图号

Fig No

残压 Residual voltage

kV.peak

kV.rm
YH5WZ-5/13.5 3 5 4.0 7.2 5 13.5 15.5 11.5 82 200 1
YH5WZ-10/27 6 10 8.0 14.4 5 27.0 31.0 23.0 82 200 1
YH5WZ-12/32.4 10 12 9.6 17.4 5 32.4 37.2 27.6 82 255 1
YH5WZ-15/40.5 10 15 12.0 21.8 5 40.5 46.5 34.5 82 255 1
YH5WZ-17/45 10 17 13.6 24.0 5 45.0 51.8 38.3 82 255 1
Y5WZ-26/66 20 26 20.8 37.0 5 66.0 76.0 56.0 232 995 5
YH5WZ-26/66 114 345 4
Y5WZ-32/85 20 32 25.6 47.0 5 85.0 95.0 75.0 232 995 5
YH5WZ-32/85 114 405 4
Y5WZ-51/134 35 51 40.8 73.0 5 134.0 154.0 114.0 232 995 5
YH5WZ-51/134 114 525 4
Y5WZ-84/221 66 84 67.2 121 5 221 254 188 252 1200 6
YH5WZ-84/221 195 1296 8
Y5WZ-90/235 66 90 72.5 130 5 235 270 201 252 200 6
YH5WZ-90/235 195 1296 8
Y10WZ-90/235 66 90 72.5 130 10 235 264 201 252 1200 6
YH10WZ-90/235 195 1296 8
Y5WZ-96/250 110 96 75 140 5 250 288 213 270 1620 7
YH5WZ-96/250 195 1296 8
Y10WZ-96/250 110 96 75 140 10 250 280 213 270 1620 7
YH10WZ-96/250 195 1296 8

The structure and installtion dimensional drawing:
Metal Oxide Surge Arrester Gapless MOA For Power Station YH5WZ-10/27 0
