40.5kV Dry Insulation Capacitance Graded Bushing For Transformer

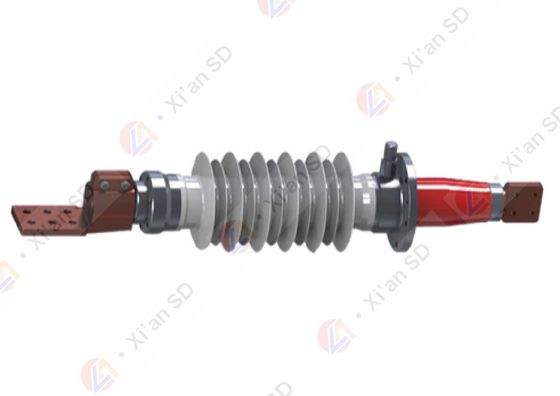

Large Image : 40.5kV Dry Insulation Capacitance Graded Bushing For Transformer

Product Details:

Place of Origin:	China
Brand Name:	Xi'an Shendian
Certification:	IEC 60137
Model Number:	RIFB-xx/xxx

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc.
Price:	To be determined by type and quantity.
Packaging Details:	Seaworthy package/ Customer specified.
Delivery Time:	Ex-work 1 week~1 month depends on quantity.
Payment Terms:	T/T; L/C.
Supply Ability:	3000 pc/year.

Contact Now

40.5kV Dry Insulation Capacitance Graded Bushing For Transformer

Description

Type:

Resin Impregnated Fiberfill

Usage:

Transformer Lead-out Bushing

High Light:

40.5kV Capacitor Bushing Shendian

Dry Insulation Capacitor Bushing Shendian

33kv transformer bushing Shendian

24kV~40.5kV Dry Insulation Transformer Bushing

Product introduction:

Resin Impregnated Fiberfill bushing combines advantages of oil-paper bushing and RIP bushing. Advanced and imprvoed techniques make bushing better prevent from deformation, rupture and moisture absorption.

Advantage:

1/ Partial discharge is close to 0 at rated voltage;

2/ Dielectric dissipation ＜0.35% at rated voltage;

3/ Thermal short-time current: 25Ir, duration 2s.

Standard Technical Data:

Below info. only for your reference, all data shall be specified and determined by technical specification and customer demand.

Technical data
Standard	IEC 60137; GB/T 4109-2008
Rated voltage	24kV/40.5kV/ Customer specified
Rated current	630～5000A
1min power frequency voltage withstand (Dry/ Wet)	60/50kV; 95/80kV
Lightning impulse voltage withstand	125kV; 200kV
Tanδ at 1.05Um	＜0.0035
Partial discharge at Ur	≤5pC
Bending load	3150
Specific Creepage distance	31mm/kV

Schematic diagram:

Tag:

Capacitor Bushing 220kV,

40.5kV capacitor type bushing,

3150A Capacitor Bushing
