6kV Silicon Rubber Full Insulate Busbar With Big Current Carrier Performance

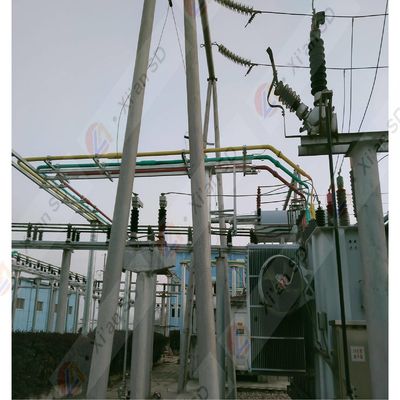

Large Image : 6kV Silicon Rubber Full Insulate Busbar With Big Current Carrier Performance

Product Details:

Place of Origin:	China
Brand Name:	Xi'an Shendian
Certification:	GB/T 12706.3/ GB/T 12706.4
Model Number:	GGM-GTY-6/**

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc.
Price:	To be determined by type and quantity.
Packaging Details:	Seaworthy package/ Customer specified.
Payment Terms:	T/T; L/C.
Supply Ability:	50000m/year.

Contact Now

6kV Silicon Rubber Full Insulate Busbar With Big Current Carrier Performance

Description

Insulation Material:

Silicon Rubber

Wrapping Method:

Extruded Insulation

Nominal System Voltage:

Up To 110kV/ Customer Specified

Conductor Material:

Cu/ Al

High Light:

6kV Tubular Busbar

Silicon Rubber 6kV Tubular Busbar

6kV tubular bus bar

6kV Tubular Busbar With Extruded Insulation

Product introduction:

Shendian tubular busbar fits for electric system up to 110kV, which is produced according to extruded insulation techniques.

It is fully independent R&D by Shendian who possess lots of patents and IP.

Work condition:

1/ -60℃~+65℃;

2/ Altitude 4000m;

3/ Anti-seismic 0.5g;

4/ Polution level IV;

Characteristic:

1/ Advanced production techniques;

2/ Ansys simulation powers for better electric field control;

3/ Reliable insulation performance;

4/ Strong mechnical strength;

5/ Big current carrier performance;

6/ Good heat dissipation.

Standard Technical Data:

Below info. only for your reference, all data shall be specified and determined by technical specification and customer demand.

Item	Description		Offered
1	Manufacture/ Country of Origin		Xi'an Shendian/ China
2	Model		GGM-GTY-6/**
3	Applicable standard		GB/T 12706.3/ GB/T 12706.4
4	Type		Extruded insulation
5	Nominal system voltage	kV	6
6	Rated voltage	kV	7.2
7	Power frequency voltage withstand (Dry/Wet)	kV	30/23
8	Lightning impulse withstand voltage	kV	60
