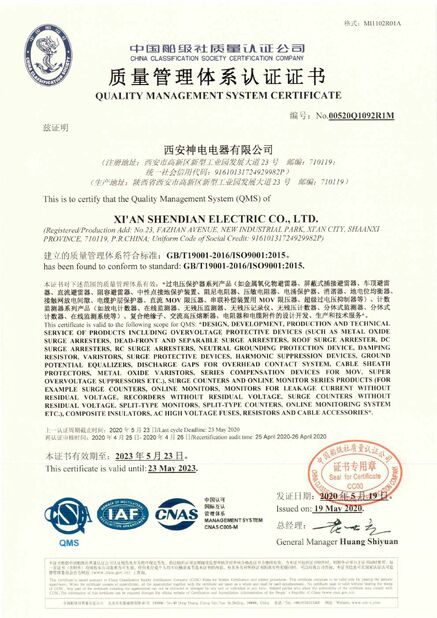

Certification

I'm Online Chat Now

Polymer Housed Metal Oxide Surge Arresters 10.5kV For Motor

Large Image : Polymer Housed Metal Oxide Surge Arresters 10.5kV For Motor

Product Details:

Place of Origin:	China
Brand Name:	Xi'an Shendian
Certification:	IEC 60099-4/ GB 11032
Model Number:	YH2.5WD1-13.5/38.7×13.5/31

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc.
Price:	To be determined by type and quantity.
Packaging Details:	Seaworthy package/ Customer specified.
Delivery Time:	Ex-work 1 week~1 month depends on quantity.
Payment Terms:	T/T; L/C.
Supply Ability:	0.5M pc/year.

Contact Now

Polymer Housed Metal Oxide Surge Arresters 10.5kV For Motor

Description

Material:	Metal-oxide	Usage:	Indoor
Type:	3P Gapless For Motor	Color:	Red/ Grey/ Customer Specified
Nominal System Voltage:	10.5kV	Nominal Discharge Current:	5kA
Connection Mode:	Phase-Phase; Phase-Earth	Altitude:	Up To 2600m
Highlight:	Polymer Housed Metal Oxide Surge Arresters 10.5kV , 10.5kV Metal Oxide Surge Arrester , IEC 60099-4 10.5kV indoor lightning arrester

10.5kV Combination Type 3P Surge Arrester For Motor

Product introduction:

Combined polymer metal-oxie surge arrester has been widely used for interphase protection and phase protection in the industry of petrochemical, railway and coal industry, etc.

Work Condition:

1/ Indoor;

2/ -40℃+40℃;

3/ Altitude up to 2600m;

4/ Power supply frequency range from 48Hz to 62Hz;

5/ Anti-seismic: 0.25g;

Standard Technical Data:

Below info. only for your reference, all data shall be specified and determined by technical specification and customer demand.

Item	Description		Offered
1	Manufacture/ Country of Origin		Xi'an Shendian/ China
2	Model		YH2.5WD1-13.5/38.7×13.5/31
3	Applicable standard		IEC 60099-4
4	Type		Outdoor, ZnO, gapless
5	Norminal voltage of system	kV	10.5
6	Earthing system		Effectively earthed
7	Rated frequency	Hz	50/60
8	Rated voltage of SA	kV	13.5
9	Maximum continuous operating voltage	kV	11.5
10	Connection mode		Phase-Phase/ Phase-Earth
11	Power frequency reference voltage	kV	25.0/24.0
12	at reference current of	mA (D.C)	1
12	Note: State peak value or rms.	mA (D.C)	1
13	Nominal discharge current	kA	2.5
14	(a) Lightning impulse	kV	≤38.7/31
	(b) Steeping impulse	kV	≤43.3/34.7
	(c) Switching impulse	kV	≤31/25

Schematic diagram:

Polymer Housed Metal Oxide Surge Arresters 10.5kV For Motor 0

Reference:

1/ Shendian MOA is widely used in China EHV (Extra hight voltage) projects of State Grid, Southern Power Grid.

2/ Supplied MOA to ABB/Siemens/Schneider more than 20 years, as well as other capacitor/switchgear manufacturers.

3/ Shendian MOA has been exported to more than 30 counties all over the world.

Polymer Housed Metal Oxide Surge Arresters 10.5kV For Motor 1
