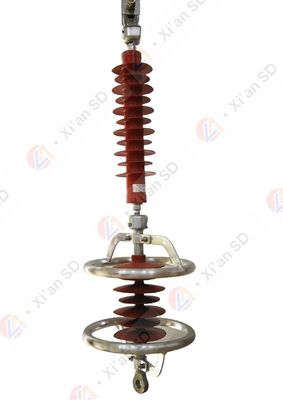

110kV Polymer Lightning Surge Arrester With Gap For Transmission Line

Large Image : 110kV Polymer Lightning Surge Arrester With Gap For Transmission Line

Product Details:

Place of Origin:	China
Brand Name:	Xi'an Shendian
Certification:	IEC 60099-4/ GB 11032
Model Number:	YH5(10)CX-90/260(280/296)/ As per Technical demand

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc.
Price:	To be determined by type and quantity.
Packaging Details:	Seaworthy package/ Customer specified.
Delivery Time:	Ex-work 1 week~1 month depends on quantity.
Payment Terms:	T/T; L/C.
Supply Ability:	0.5M pc/year.

Contact Now

110kV Polymer Lightning Surge Arrester With Gap For Transmission Line

Description

Material:	Metal-oxide	Type:	With Series Gap
Usage:	Indoor/ Outdoor	Color:	Red/ Grey/ Customer Specified
Nominal System Voltage:	110kV	Nominal Discharge Current:	5kA/ 10kA
Bushing Shed Dimension:	Φ195mm	Height:	975mm/ 2035mm
Highlight:	110kV transmission line lightning arrester , 10kA transmission line lightning arrester , Polymer 110kV surge arrester

110kV Transmission Polymer With Gap Surge Arrester

Product introduction:

Polymer-housed metal oxide surge arrester (MOA) combines advantages of organic insulation material and porcelain-housed MOA. It is of good electrical performance, high dielectric strength, resistance to high/low-temperature, to aging, as well as explosion-proof, excellent chemical stability, and hydrophobicity. Polymer housing is made of high-quality silicone rubber, formed by integral moulding and curing process which benefites sealing performance, service life and lead time.

Metal oxide varistors are wrapped and fixed by PBT, after that a varistor rod shall be processed by vulcanizing machine into a completed surge arrester. This kind of uniq technics greatly improves SA electricl performance and shorten production time.

Advantage:

1/ Low partial discharge;

2/ Low residual voltage;

3/ High dielectric insulation level;

4/ Tolerance to high/low temperature;

5/ Explosion-proof;

6/ Anti-corrosion;

7/ Anti-aging;

8/ Shorter lead time (Ex-work 1 week+).

Standard Technical Data:

Below info. only for your reference, all data shall be specified and determined by technical specification and customer demand.

Item	Description		Offered	Offered	Offered	Offered
1	Manufacture/ Country of Origin		Xi'an Shendian/ China
2	Model		YH5CX-90/260	YH10CX-90/260	YH10CX-96/280	YH10CX-102/296
3	Applicable standard		IEC 60099-4	IEC 60099-4	IEC 60099-4	IEC 60099-4
4	Type		Outdoor, ZnO, gapless
5	Norminal voltage of system	kV	110	110	110	110
6	Earthing system		Effectively earthed
7	Rated frequency	Hz	50/60	50/60	50/60	50/60
8	Rated voltage of SA	kV	90	90	96	102
9	Power frequency reference voltage	kV	170	170	170	170
10	- at reference current of Note: State peak value or rms.	mA (D.C)	1	1	1	1
10	- at reference current of Note: State peak value or rms.	mA (D.C)	1	1	1	1
11	Nominal discharge current	kA	5	10	10	10
12	(a) Lightning impulse	kV	≤260	≤260	≤280	≤296
12	(b) Steeping impulse	kV	≤292	≤292	≤314	≤332
13	Material employed in series non-linear resistor		ZnO etc.	ZnO etc.	ZnO etc.	ZnO etc.
14	Arrester housing:
	- Material		Polymer
	- Minimum creepage distance	mm/kV	25/31	25/31	25/31	25/31
15	- HV terminal		hot zip screw	hot zip screw	hot zip screw	hot zip screw
15	- earth terminal		hot zip screw	hot zip screw	hot zip screw	hot zip screw
16	Diameter of bushing sheds	mm	195	195	195	195
17	Height	mm	975/2035	975/2035	975/2035	975/2035

Schematic diagram:

Reference:

1/ Shendian MOA is widely used in China EHV (Extra hight voltage) projects of State Grid, Southern Power Grid.

2/ Supplied MOA to ABB/Siemens/Schneider more than 20 years, as well as other capacitor/switchgear manufacturers.

3/ Shendian MOA has been exported to more than 30 counties all over the world.
