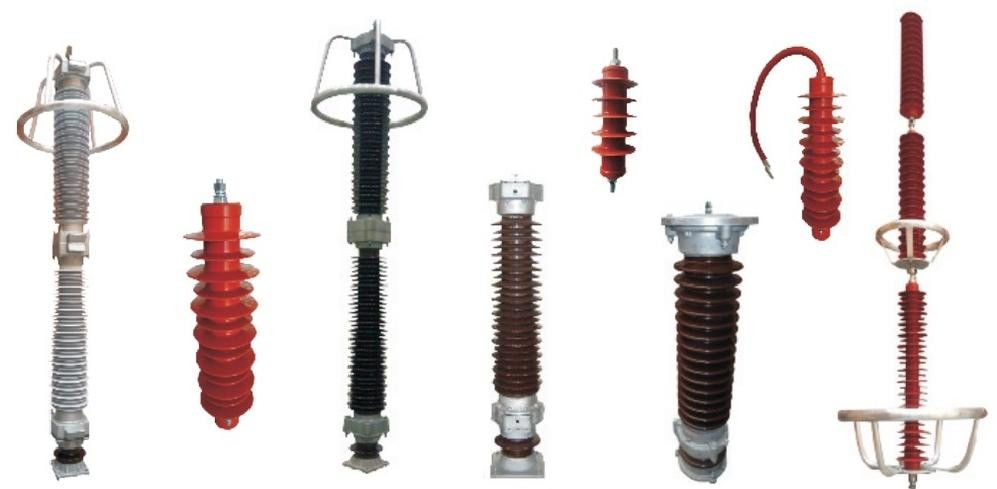

Metal-oxide surge arrester-Aapless MOA for Distribution

Certification
China Shendian Electric Co. Ltd certification
China Shendian Electric Co. Ltd certification
I'm Online Chat Now

Metal-oxide surge arrester-Aapless MOA for Distribution

Metal-oxide surge arrester-Aapless MOA for Distribution
Metal-oxide surge arrester-Aapless MOA for Distribution

Large Image :  Metal-oxide surge arrester-Aapless MOA for Distribution

Product Details:
Place of Origin: China
Brand Name: Xi'an Shendian
Certification: IEC 60099-4/ GB 11032
Model Number: YH5WS-5/15/ As per Technical demand
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc.
Price: To be determined by type and quantity.
Packaging Details: Seaworthy package/ Customer specified.
Delivery Time: Ex-work 1 week~1 month depends on quantity.
Payment Terms: T/T; L/C.
Supply Ability: 0.5M pc/year.

Metal-oxide surge arrester-Aapless MOA for Distribution

Description
Material: Metal-oxide Type: With Series Gap
Usage: Indoor/ Outdoor Color: Red/ Grey/ Customer Specified
Nominal Voltage Of System: 3kV Nomina Discharge Current: 5kA
Parachute Diameter: Φ76mm Height: 200mm

Metal-oxide surge arrester-Aapless MOA for Distribution



Metal-oxide surge arrester introduction:

Metal-oxide surge arrester is one of the most advanced protectors limiting overvoltage, and is the basis of the insulation coordination equipment in power industry.Metal-oxide surge arrester has many advantages such as quick action, flat Vol-ampere characteristics, low residual voltage, high discharge current capacity, stable electrical performance,long lifecycle,simple structure and etc.Metal-oxide surge arrester is widely used in power generation, transformation and distribution system to prevent the insulation of the power equipments from being damaged by the over-voltage.

Polymer-housed metal-oxide surge arrester is the scientific achievement that combines the advantages of organic insulation material and traditional porcelain-clad MOA technique.Metal-oxide surge arrester has excellent insulation performance,high dialectical strength,anti-leaking,anti-electric corrosion,heat-resisting,cold-resisting,anti-aging,explosion-proof,and good chemical stability,hydrophobic property,and nice sealing.Metal-oxide surge arrester is designed and manufactured strictly following the standard of GB 11032 and achieves advantage against the competitive international products.



Description of type:

According to the JB/T 8459-2011,the type of MOA shows as below:

Product type: Y-porcelain-housed YH-polymer-housed
Structure feature: W-without gap C-with series gaps B-with shunt gaps
Service condition: S-distribution Z-power station R-shunt capacitor
D-motor T-electrical railway X-overhead line
Additional feature: W-anti-pollution TH-for hot and humid area G-high altitude type

Normal service conditions of metal-oxide surge arrester:

1.For indoors and outdoors;

2.Ambient air temperature within the range of-40℃~+40℃;

3.Altitude not exceeding 2600m;

4.Frequency for A.C.power supply not less than 48Hz and not exceeding 62HZ;

5.Power Frequency voltage applied continuously between the terminals of the arrester not exceeding its continuous operating voltage;

6.Earthquake intensity:8 degree and below;

10.Maximal wind velocity not exceeding 35m/s. Please indicate in the contract,at exceptionally movement condition.


Advantage of metal-oxide surge arrester:
1.Metal-oxide surge arrester have low partial discharge;
2.Metal-oxide surge arrester have low residual voltage;
3.Metal-oxide surge arrester have high dielectric insulation level;
4.Tolerance to high/low temperature;
5.Explosion-proof;
6.Anti-corrosion;
7.Anti-aging;
8. Shorter lead time (Ex-work 1 week+).


Technicaparameters:

Metal-oxide surge arrester-Aapless MOA for Distribution

Below info. only for your reference, all data shall be specified and determined by technical specification and customer demand.

Technical Parameta

/Product type

Nominal voltage of system

Rated voltage

kV.m

Continuou operation

voltage

Reference

voltage at D.C.1mA kV.pc

Nomina

discharge current kA .peak

 Lightning 1mpulse

 Steeping mpulse  Switching impulse

Parachute

diameter

φ mm

Height

H mm

Fig No

YH5WS-5/15 3 5 4.0 7.5 5 15.0 17.3 12.8 76 200 1
YH5WS-10/30 6 10 8.0 15.0 5 30.0 34.6 25.6 76 200 1
YH5WS-12/35.8 10 12 9.6 18.0 5 35.8 41.2 30.6 76 255 1
YH5WS-15/45.6 10 15 12.0 23.0 5 45.6 52.5 39.0 76 255 1
YH5WS-17/50 10 17 13.6 25.0 5 50.0 57.5 42.5 76 255 1

The structure and installtion dimensional drawing:
Metal-oxide surge arrester-Aapless MOA for Distribution 0
