Anti Corrosion MOA Lightning Surge Arrester Indoor / Outdoor Usage YH5WS-12/35.8

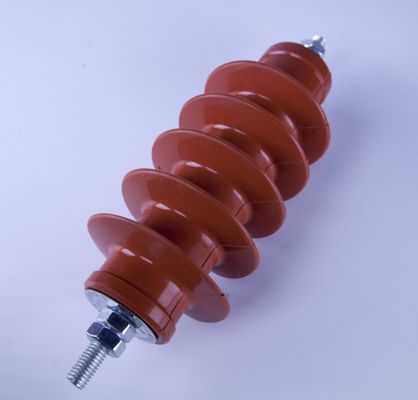

Large Image : Anti Corrosion MOA Lightning Surge Arrester Indoor / Outdoor Usage YH5WS-12/35.8

Product Details:

Place of Origin:	China
Brand Name:	Xi'an Shendian
Certification:	IEC 60099-4/ GB 11032
Model Number:	YH5WS-12/35.8

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc.
Price:	To be determined by type and quantity.
Packaging Details:	Seaworthy package/ Customer specified.
Delivery Time:	Ex-work 1 week~1 month depends on quantity.
Payment Terms:	T/T; L/C.
Supply Ability:	0.5M pc/year.

Contact Now

Anti Corrosion MOA Lightning Surge Arrester Indoor / Outdoor Usage YH5WS-12/35.8

Description

Material:	Metal-oxide	Color:	Red/ Grey/ Customer Specified
Usage:	Indoor/ Outdoor	Type:	Gapless For Transformer Neutral Point
Nominal Discharge Current:	5kA	Bushing Shed Dimension:	Φ76 Mm
Nominal System Voltage:	10kV	Height:	255 Mm
High Light:	Outdoor Usage Lightning Surge Arrester , Anti Corrosion Lightning Surge Arrester , MOA Surge Protection Device

Price Guarantee-Lightning Surge Arrester-YH5WS-12/35.8

Product introduction:

Polymer-housed metal oxide surge arrester (MOA) combines advantages of organic insulation material and porcelain-housed MOA. Lightning Surge Arrester is of good electrical performance, high dielectric strength, resistance to high/low-temperature, to aging, as well as explosion-proof, excellent chemical stability, and hydrophobicity. Polymer housing is made of high-quality silicone rubber, formed by integral moulding and curing process which benefites sealing performance, service life and lead time.

Metal oxide varistors are wrapped and fixed by PBT, after that a varistor rod shall be processed by vulcanizing machine into a completed surge arrester. This kind of uniq technics greatly improves SA electricl performance and shorten production time.

Advantage of Lightning Surge Arrester:

1.Metal-oxide surge arrester have low partial discharge;

2.Metal-oxide surge arrester have low residual voltage;

3.Metal-oxide surge arrester have high dielectric insulation level;

4.Tolerance to high/low temperature;

5.Explosion-proof;

6.Anti-corrosion;

7.Anti-aging;

8. Shorter lead time (Ex-work 1 week+).

Technical parameters:

Lightning Surge Arrester-Aapless MOA for Distribution

Technical Parameta /Product type	Nominal voltage of system	Rated voltage kV.m	Continuou operation voltage	Reference voltage at D.C.1mA kV.pc	Nomina discharge current kA .peak	Lightning 1mpulse	Steeping mpulse	Switching impulse	Parachute diameter φ mm	Height H mm	Fig No
YH5WS-5/15	3	5	4.0	7.5	5	15.0	17.3	12.8	76	200	1
YH5WS-10/30	6	10	8.0	15.0	5	30.0	34.6	25.6	76	200	1
YH5WS-12/35.8	10	12	9.6	18.0	5	35.8	41.2	30.6	76	255	1
YH5WS-15/45.6	10	15	12.0	23.0	5	45.6	52.5	39.0	76	255	1
YH5WS-17/50	10	17	13.6	25.0	5	50.0	57.5	42.5	76	255	1

The structure and installtion dimensional drawing:
